JY305 Tractor GPS, Auto Steer System & SMA26 Pro Base RTK 2.5cm Accuracy 10cm Precision by PPP Without RTK, AB Line in Straight Curve A+ Pivot U-Turn Mode for Planting Spraying Harvesting
4.2 (140 items)
Limited Time SaleUS$3,465.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214736859 | Release Date | 2026/04/12 | List Price | US$2,310.00 | Model Number | 214736859 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【2.5cm Accuracy】Correction sources by RTK Base SMA26 Pro or CORS give the JY305 autosteering system an accuracy of 2.5 cm. Please purchase the JY305+SMA26 Pro RTK base bundle if you do not have CORS. Otherwise, it operates in PPP mode with an accuracy of 10 cm and above. There is no need for additional networks subscriptions or charges when using SMA26 Pro RTK BASE or PPP
- 【Necessary Parts】1)Included extra and built-in gyroscope: Single or double gyro mode both work with the JY305 gps system for tractor 2) Included type A spline with 36 teeth and a diameter of 21.3-21.7 mm, which is compatible for New Holland and John Deere. Free additional spline from SMAJAYU is available to fit kinds of brand tractor
- 【Software and Support】1)multiple language:English,Spanish,French...Multiple constellations and frequencies. Farm measurement and farm management supported. The field size,speed can be seen on the display. Import A-B line supported 2) Installation manual,video Training and remote diagnosis are supported
- 【How to work】This tractor Auto steering system can automatically driveless on farm. Login CORS account or connect with RTK base to get correction service so that it get 2.5cm stable precision farming. Otherwise use PPP mode to get 10cm accuracy. 20minutes Installation and accuracy debugging then Start creating farms, plots and AB lines

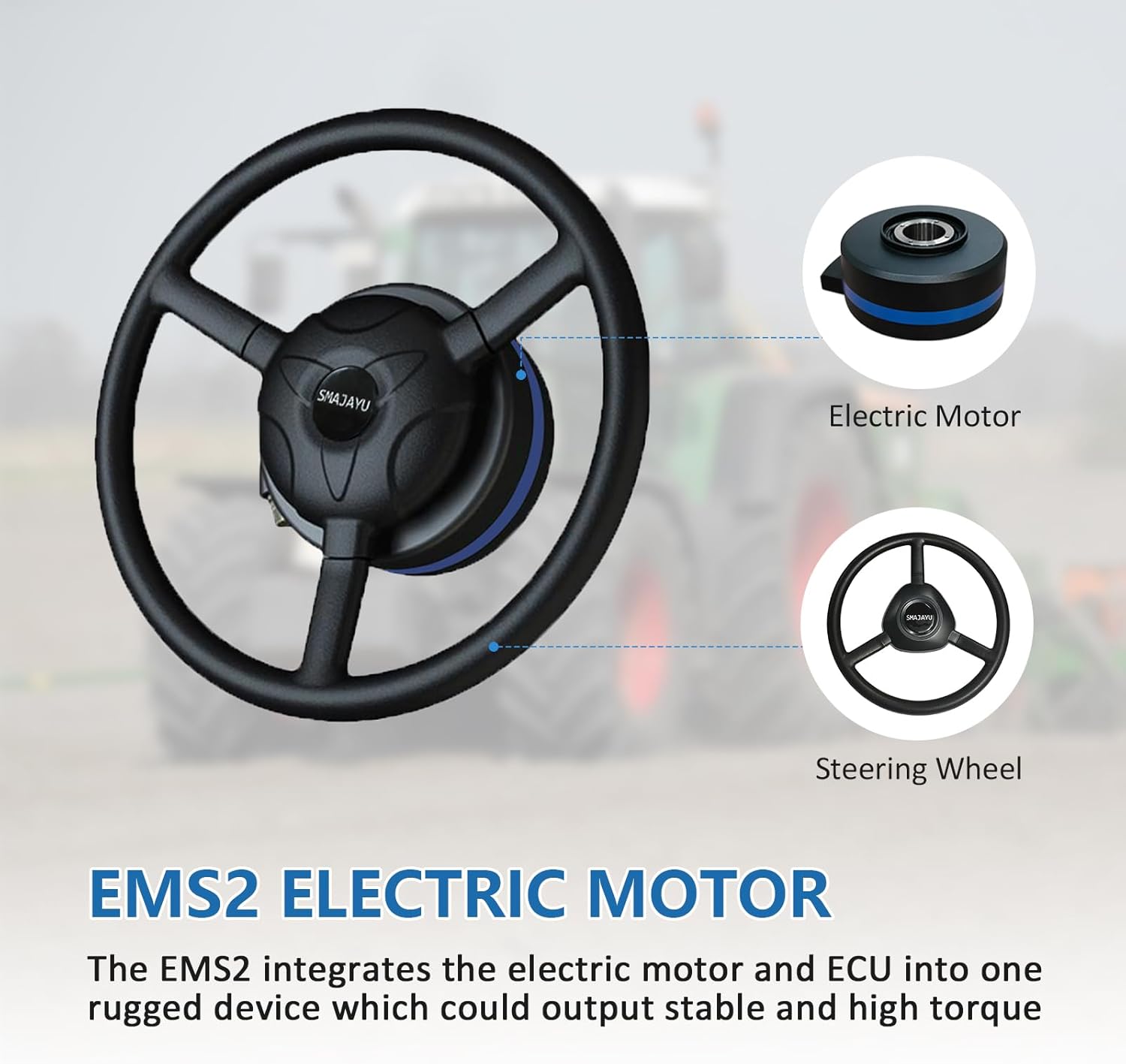

- 【What is it】Auto steering system includes a 10'' water proof tablet , a high torque auto steering motor with built-in controller, an Attitude sensor, high precision GNSS GPS receiver built in gyroscope and wireless module and accessories cables and tools
| Brand | SMAJAYU |
|---|---|
| Map Types | Worldwide |
| Model Name | JY305 |
| Model Year | 2022 |
| Screen Size | 10 Inches |
| Display Type | touch screen |
| Manufacturer | SMAJAYU |
| BuiltIn Media | 1 x GPS Sensor, 1 x Tablet, 1 x Handheld Display, 1 x Steering Wheel Mount, 1 x Cable |
| Mounting Type | Panel Mount, Dashboard Mount |
| Control Method | Touch |
| Operating System | Windows |
| Audio Output Mode | Stereo |
| Touch Screen Type | Capacitive |
| Compatible Devices | SMAJAYU |
| Additional Features | Touchscreen |
| HumanInterface Input | Touchscreen |
| Warranty Description | 1 year |
| Connectivity Protocol | Bluetooth |
| Are Batteries Included | No |
| Connectivity Technology | BT |
| Compatible with Vehicle Type | Harvester, Plant Protection Machine, Rice Transplanter, Tractor |
| Supported Satellite Navigation System | GLONASS, GPS, Galileo |
