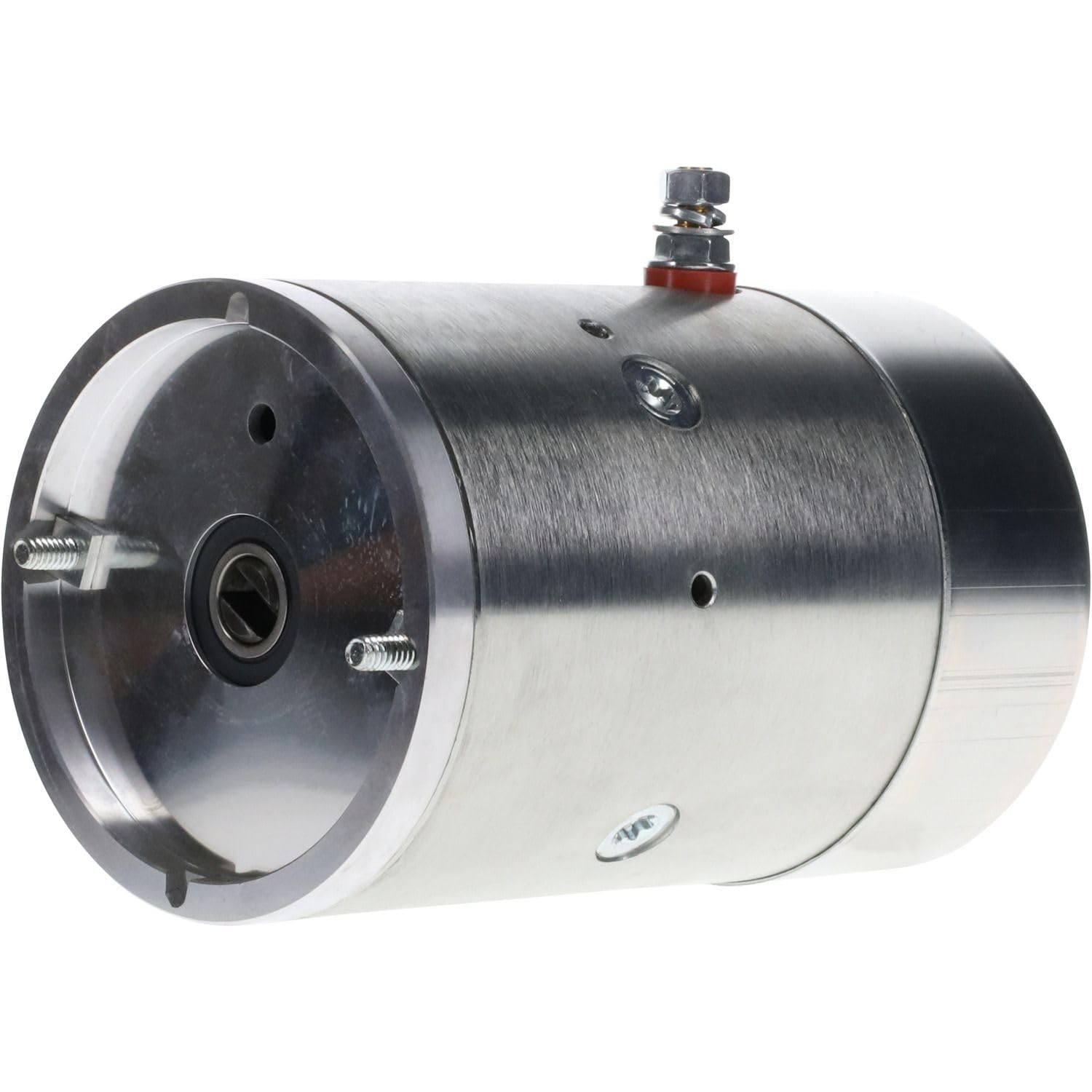

RAREELECTRICAL Snow Plow Hydraulic Pump Motor Compatible with Meyer Diamond E57 E60 Quick Lift 12V Cw Slotted Shaft Meyer 2869Ab 2529Ac 15689 Prestolite 46-4196 Mue-6209

Meyer Diamond Snow Plow Motor - E57 E60 Hydraulic Pump Quick Lift 12V Clockwise New 12V electric motor replacement for Meyer and Diamond snow plow hydraulic lift systems. Direct cross-reference for Meyer 15689, 15727, 15687, 2529AB, 2529AC, 2869AB, Prestolite 46-4196, MUE-6209, MUE-6209S, Iskra 11-212-981, and W-8991. Features clockwise rotation, 15mm slotted shaft, 5/16-24 terminal, 114.3mm (4.5 in) field housing OD, 168.3mm (6.626 in) overall length, and double ball bearings for durability. Produces 1.7kW (2.28 HP) output. Common ground configuration. Compatible with Meyer E57 and E60 hydraulic pump units and Diamond snow plow Quick Lift applications for commercial and residential snow removal. OEM PART NUMBERS: Iskra: 11-212-981 Meyer: 15687 / 15689 / 15727 / 15753 / 2529AB / 2529AC / 2869AB / 2869AC Prestolite: 46-4196 / MUE-6209 / MUE-6209S W-8991SPECIFICATIONS: Voltage: 12V Rotation: CW (Clockwise) Power: 1.7kW / 2.28 HP Shaft OD: 15mm (0.591 in) Slotted Terminal: 5/16-24 Field Housing OD: 114.3mm / 4.5 in Overall Length: 168.3mm / 6.626 in Bearings: Double Ball Bearing Ground: Common Ground Weight: 16 lbs Condition: NewAPPLICATIONS: Meyer E57 Hydraulic Pump Unit (Lift and Angle Functions) Meyer E60 Hydraulic Pump Unit (Lift, Angle Left, and Angle Right Functions) Diamond Snow Plow Quick Lift Hydraulic Pump Systems Meyer Quick Lift Applications Using Part Numbers 2869AB and 2869AC Commercial and Residential Snow Plow Installations MOTOR FEATURES: 15mm Slotted Output Shaft 5/16-24 Terminal Double Ball Bearing Construction Common Ground Configuration Motor Only - Does Not Include Solenoid or Pump Assembly ⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.

• Compatible with CASE, PRESTOLITE, RAM. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Part Numbers: / Iskra: 11-212-981 / Meyer: 15687 / 15689 / 15727 / 15753 / Meyer: 2529Ab / 2529Ac / 2869Ab / 2869Ac / Prestolite: 46-4196 / Mue-6209 / Mue-6209S / W-8991 / Specifications: / Voltage: 12V / Rotation: Cw (Clockwise) / Power: 1.7Kw / 2.28 Hp / Shaft Od: 15Mm (0.591 In) Slotted / Terminal: 5/16-24 / Field Housing Od: 114.3Mm / 4.5 In / Overall Length: 168.3Mm / 6.626 In / Bearings: Double Ball Bearing / Ground: Common
• Applications: Meyer Snow Plow Pump Applications: / Meyer E57 Hydraulic Pump Unit / Meyer E60 Hydraulic Pump Unit / Meyer Snow Plow Quick Lift Systems / Meyer Plow Pump Assemblies Using Part Numbers 2869Ab And 2869Ac / Diamond Snow Plow Applications: / Diamond Snow Plow Quick Lift Hydraulic Pump Systems / Diamond Snow Plow Lift Motor Applications / Motor Features: / 15Mm (0.591 In) Slotted Output Shaft / 5/16-24 Terminal Connection / 4.5-Inch (114.3Mm) Frame
• Applications: 4.5-Inch (114.3Mm) Frame Diameter / 6.626-Inch (168.3Mm) Overall Length / Double Ball Bearing Construction / Common Ground Configuration / 1.7Kw / 2.28 Hp Output / 12V Dc Clockwise Rotation / / Compatible Pump Systems: / Meyer E57 Pump (Lift And Angle Functions) / Meyer E60 Pump (Lift, Angle Left, And Angle Right Functions) / Diamond Quick Lift Pump Systems / Used On Commercial And Residential Snow Plow Installations / / Note: / ...
• Electric Motor - Voltage: 12V Rotation: Clockwise Shaft Outside Diameter: 15 mm Source: Aftermarket
